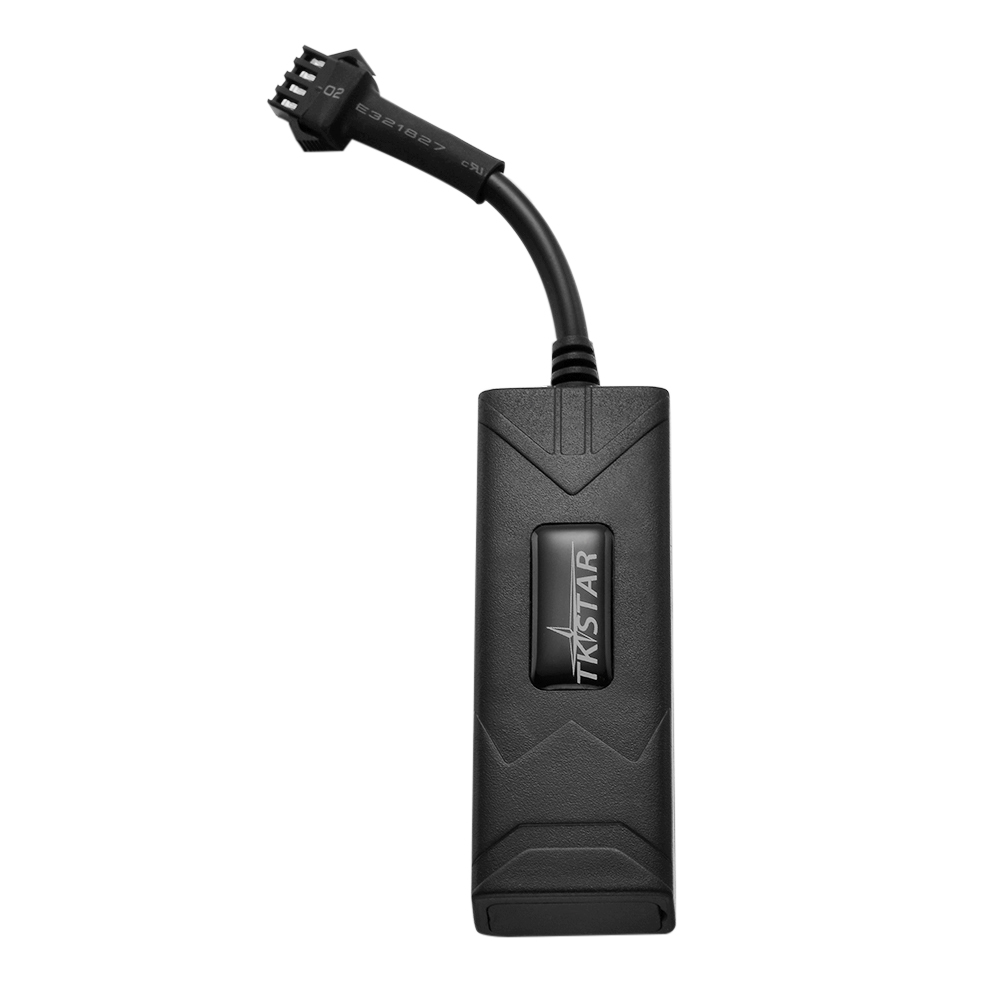

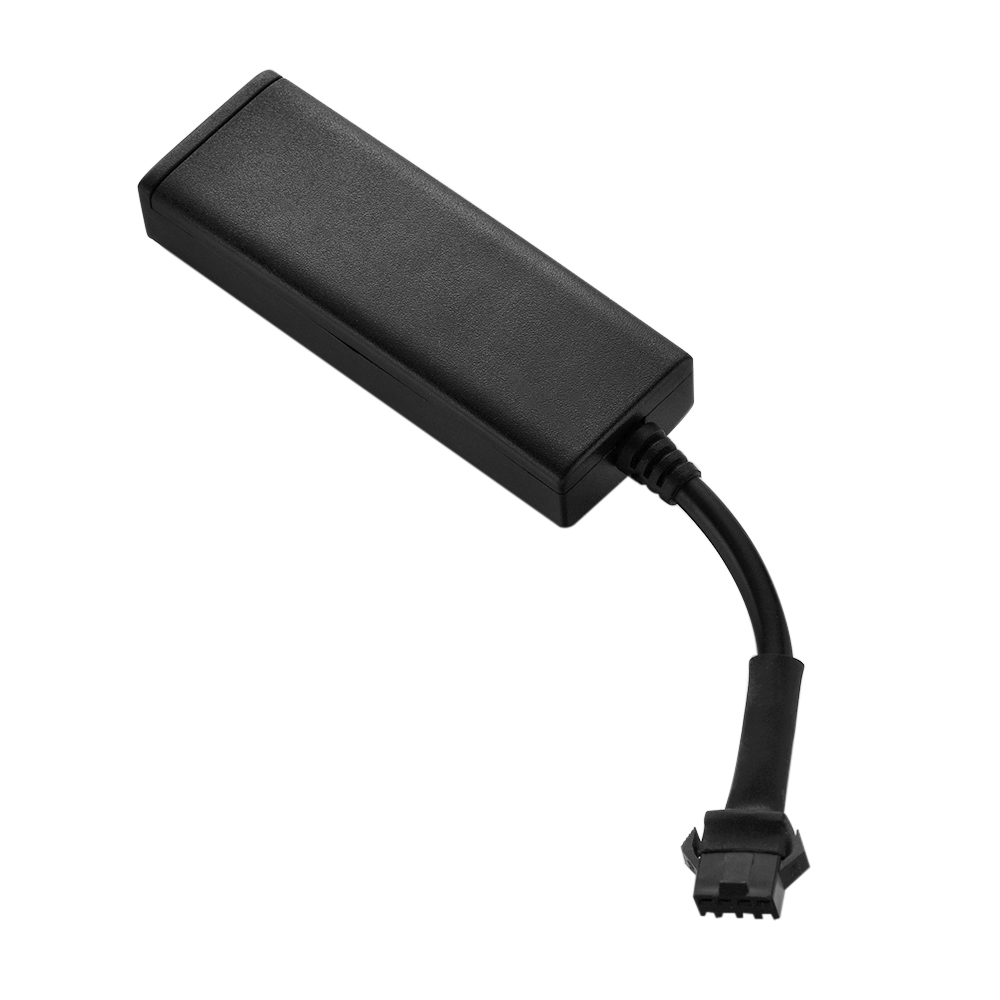

WINNES TKSTAR TK806 GPS Tracker

Applications

◆Track Motorcycle/Private cars/Vehicle rental / Equipment outside
◆Monitor company vehicles

◆Electric vehicles/ Motorcycle/Cars/Trucks/ Scooter

Support:TKSTAR,WINNES APP

Product Features

GPS+LBS+GSM GLONASS LOCATION

Supports GPS&LBS+GSM GLONASS.the users are able to use it outside globally.

VIBRATION ALERT

Build-in sensitive vibration sensor even if a slight vibration for 3second the device will send alarm to owner.

GEO-FENCE

Geo-fence will help you make safe area for your car/families .if carrier is out of safe area the device will send alarm to owner.

HISTORICAL ROUTES

The server can store the data for half year so you can check the historical routes in APP&Web platform at any time.

MOVE ALERT

As long as the car is driven far from the sidtace which was set the device will send alarm to the owner via SMS&APP.

OVER SPEED ALERT

Build-in 3G-sensor ,Once the driver is beyong the safe speed that device will send alarm to the user.

CUT OFF/RESUME CAR ENGINE

Remoting control cutting off/resume oil supply to car.

Product specs.

Content	Specs.

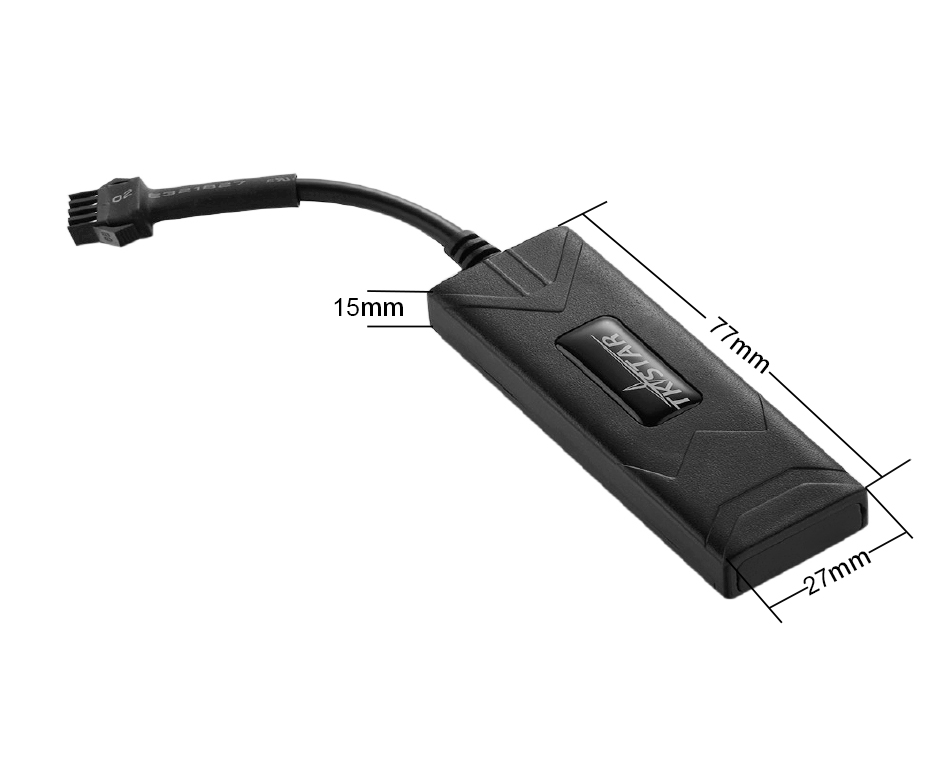

Dim.	15mm x 77mm x 27mm
Weight	36g
Network	GSM/GPRS
Band	850/900/1800/1900Mhz
GPS chip	UBLOX
GPS sensitivity	-159dBm
GPS accuracy	5m
Time To First Fix	Cold status  35-80 s  Warm status  35s Hot status  1s
Operating Voltage	10—50V

Battery	Rechargeable 3.7V 180mAh Li-ion battery
Standby	1 days
Storage Temp.	-40°C to +85°C
Operation Temp.	-20°C to +55°C
Humidity	5%--95% non-condensing
