TK901
Applications

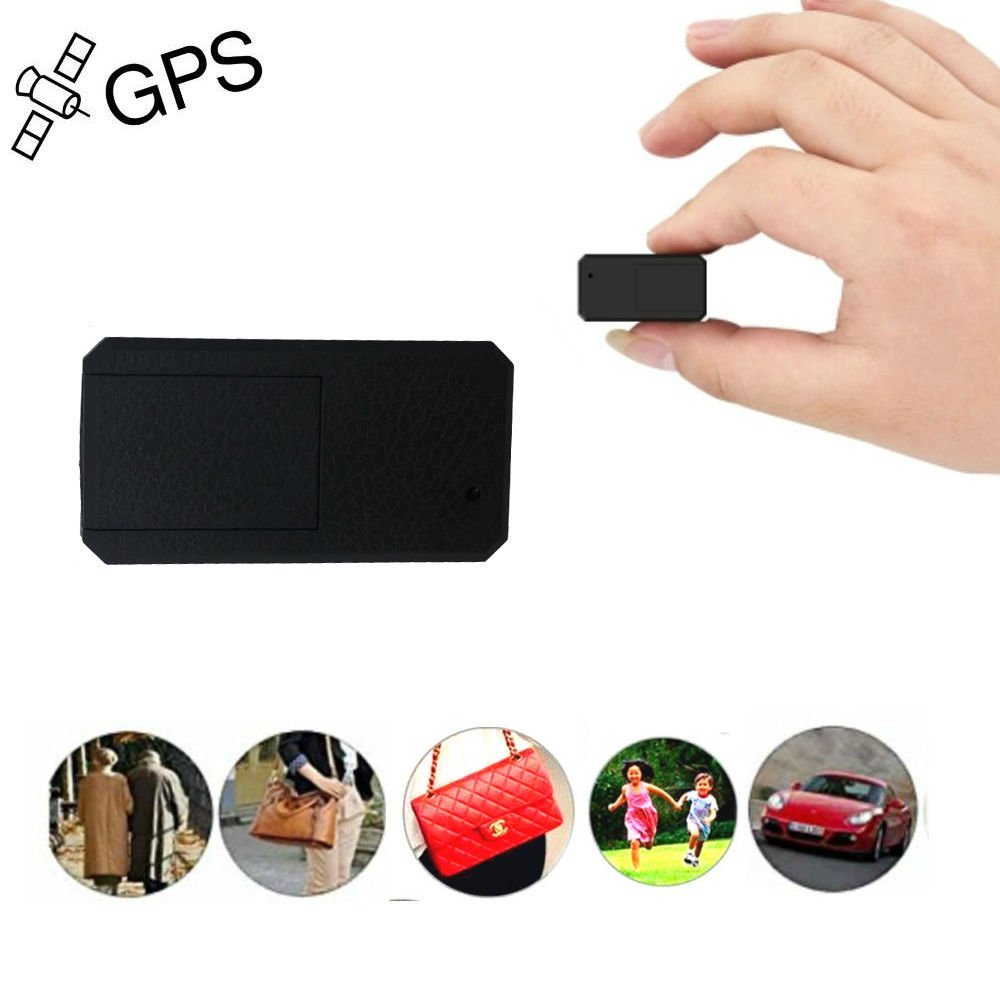

◆Track children/old people/pet outside etc
◆Track bag
Support:TKSTAR,WINNES APP
Product Features
GPS+LBS Dual Positioning Ways:
Supports GPS&LBS.If the gps signal is good, the device will locate via gps satellite, if not, the device will locate via LBS!
Under GPS locating mode, the accuracy is 5-10 meters, under LBS locating mode, the accuracy is 100-1000 meters!
VIBRATION ALERT
Build-in sensitive vibration sensor even if a slight vibration for 3second the device will send alarm to owner.
GEO-FENCE
Set up a geofence for the tracker to restrict its movements within a district. The unit will send alarm information to APP
and web server when it goes out of or get in this district.
WATERPROOF IP65
Super waterproof makes the device can not be used in rainy .
HISTORICAL ROUTES
The server can store the data for half year so you can check the historical routes in APP&Web platform at any time.
MOVE ALERT
As long as the car is driven far from the sidtace which was set the device will send alarm to the owner via SMS&APP.
When the units stays immobile in a place for 10 minutes, the user can set up the movement alarm by this command
"move+passord", then in case the device moved 500m it will send alarm SMS "Move Alarm+Latitude and longitude" to
the authorized number.
OVER SPEED ALERT
Build-in 3G-sensor ,Once the driver is beyong the safe speed that device will send alarm to the user.
This alarm works only under continuous positioning mode.When the unit speed exceeds the speedyou presetted, it will
send message “speed alarm!” to the admin number every 5 minutes.
Product specs.
Content |
Specs. |
Dim. |
47mm x 24mm x 18mm |
Weight |
25g |
Network |
GSM/GPRS |
Band |
850/900/1800/1900Mhz |
GPS sensitivity |
-159dBm |
GPS accuracy |
5m |
Time To First Fix |
Cold status 35-80 s Warm status 35s Hot status 1s |
Car charger |
12—24V input 5V output |
Wall charge |
110-220V input 5V output |
Battery |
Rechargeable 3.7V mAh Li-ion battery |
Standby |
90 days |
Storage Temp. |
-40°C to +85°C |
Operation Temp. |
-20°C to +55°C |
Humidity |
5%--95% non-condensing |
